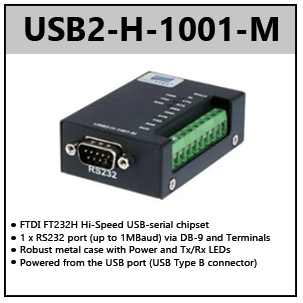

USB to RS232 adapters (HIGH SPEED)

$44.00
SKU USB2-H-1001-M
Ports
Housing
Connector
Description

Note : USB2-H-1001-M <LOW STOCK>.

Our Hi-Speed USB to RS232 adapters make it quick and simple to connect RS232 devices to a USB port on your computer. These adapters use Hi-Speed USB for reduced latency and improved throughput. RS232 is widely used in a range of legacy and new equipment, but most computers don’t have physical RS232 ports nowadays. With a variety of port numbers and enclosure styles and easy to install drivers for a range of operating systems, these adapters are ideal for adding one or more RS232 ports to your computer.

  • Based on the renowned FTDI Hi-Speed USB-Serial chipsets and drivers
  • Compact and robust design in a variety of metal and plastic enclosure styles
  • Microsoft Windows® WHQL-certified, macOS, Linux and Windows CE device drivers
  • Each RS232 port can appear as a Virtual Com Port allowing easy use with existing application programs
  • Multi-port units create a separate COM port for each RS232 port with separate settings (such as baud rate and flow control) per port
  • Ports can also be accessed using the FTDI D2xx DLL functions
  • RS232 via DB-9 Male connector (and terminal block on 1- and 2-port metal models)
  • Automatic Hardware (RTS / CTS) and software (X-on/X-off) flow control
  • Transmit and Receive LED indicators help to confirm operation and assist in troubleshooting
  • Available in 1, 2, 4, 8, 16 and 32-port versions
  • 1, 2 and 4-port models powered from the USB port (no external power needed)
  • Optional 5V power out on some models
  • USB 2.0 Hi-Speed (compatible with all USB ports including USB3)
  • Wall mount brackets included (1, 2, 4, 8 port versions)
  • -40°C to +85°C extended operating temperature range
  • The product comes complete with free downloadable drivers for Microsoft and MAC OS platforms.
  • Linux kernel 2.4.20 or greater includes USB drivers for this product downloadable for free.
  • CE/FCC approved
  • Industrial options available

Feel free to browse through the corresponding datasheet for more information.

Document
Part Number  Document Type Version File
USB2-H-1001-M
USB2-H-1002-M
USB2-H-1004-M
USB2-H-1004-M
USB2-H-1016-M
Datasheet 1.2 Download
USB2-H-1002 Datasheet 1.2 Download
USB2-H-1002 Quick Start Guide 1.1 Download
USB2-H-1004 Datasheet 1.3 Download
USB2-H-1004 Quick Start Guide  1.1 Download
ES-U-1032-RM Manual 2.0 Download
ES-U-1032-RM EOL Notifications Download
All Products Drivers Installation Guide 1.0 Download
Downloads
Driver

Download Virtual COM Port (VCP) Drivers for Windows, Mac OS and Linux

Order Information

SKU

Ports

Housing

Connector

USB2-H-1001-M 1 Metal USB-B
USB2-H-1002 2 ABS USB-mini B
USB2-H-1002-M 2 Metal USB-B
USB2-H-1004 4 ABS USB-mini B
USB2-H-1004-M 4 Metal USB-B
USB2-H-1008-M 8 Metal USB-B
USB2-H-1016-M 16 Metal USB-B
ES-U-1032-RM 32 Metal USB-B
